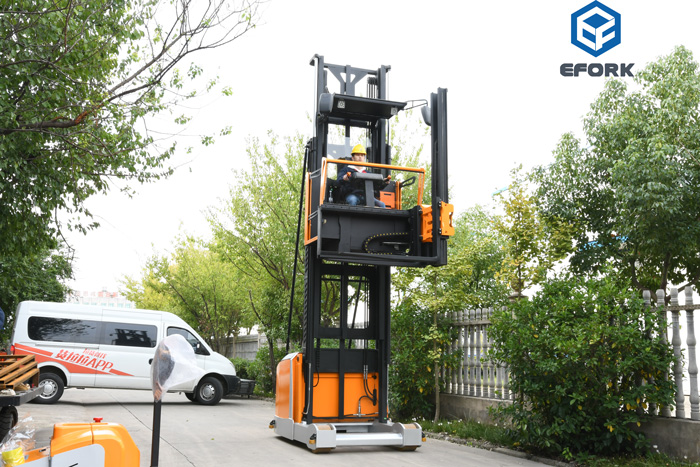

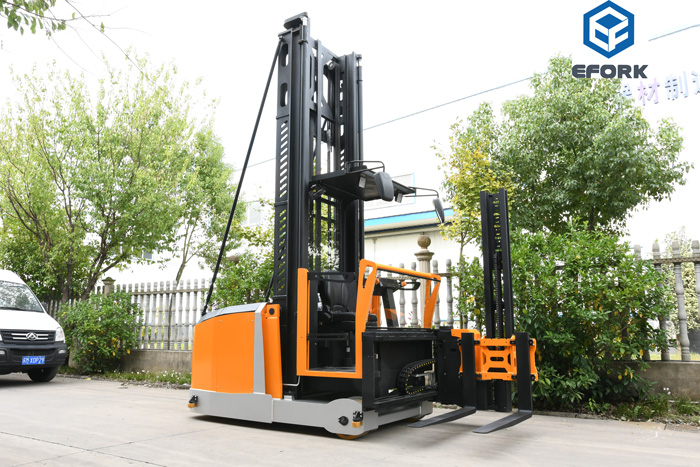

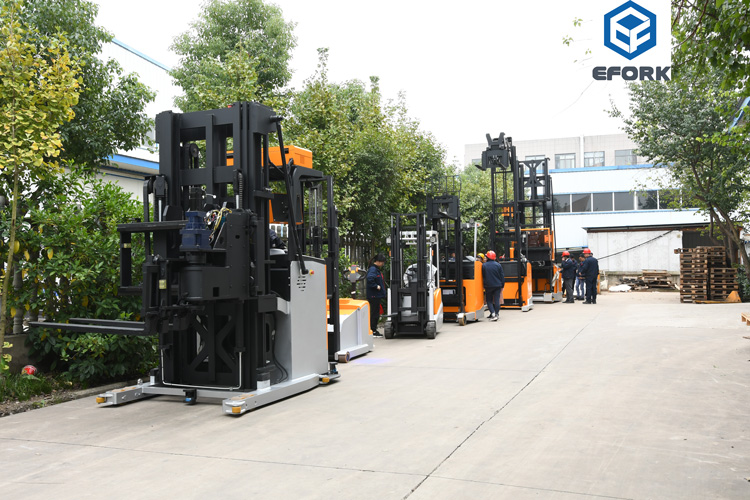

The solution is a tailor-made three-way stacking forklift (human uplink) for limited warehouse space that requires increased storage capacity. Widely used in medicine, automobile, machinery, electronics, tobacco, food and beverage, packaging, cold storage and other industries.

1. High-position stacking and picking ability

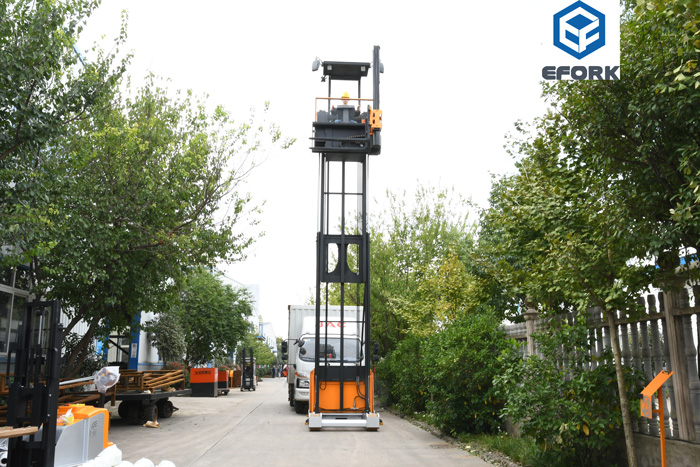

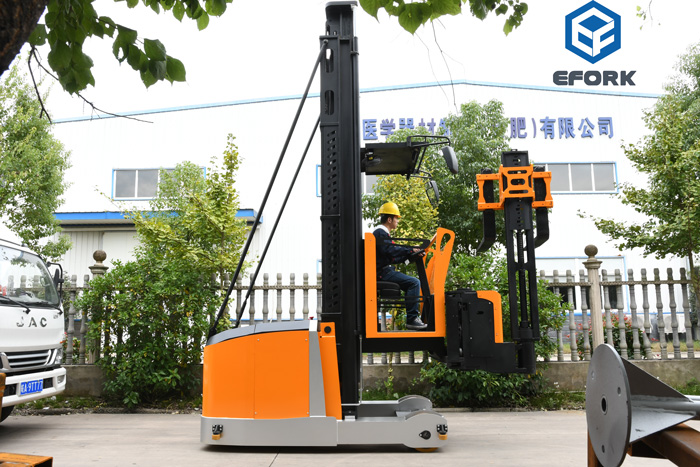

The three-way stacker forklift has a powerful high-position operation performance. The rated load and lifting height can be customized according to customer needs, rated load of 1500KG,  with the highest lifting height reaching 14.5 meters, meeting the stacking requirements of goods on high-position racks. The design of the operator following the forklift up allows the operator to have a panoramic view and pick goods manually while stacking, realizing the dual function of the stacker forklift and effectively improving operation efficiency.

2. Fork flexibility operation

The three-way forklift's forks can be moved left and right and rotated 180°. They can pick up and stack goods without turning in extremely narrow aisles. In addition, the ergonomic design of the integrated operation handlebar and other excellent human-machine engineering features simplify the operation process and improve driving comfort.

3. Rich safety configuration

The three-way stacker forklift is equipped with mechanical guide rail lane mode, large diameter load-bearing wheels, and full-wheel electromagnetic brakes. The braking distance is short, the response is timely, and the braking effect is excellent. Combined with the end-of-lane deceleration function, it ensures safe driving and operation. The forklift can also be equipped with dual deep-position telescopic forks and electric adjustable forks to further improve warehouse storage capacity and forklift safety.

4. Full AC maintenance-free system

Forklift lifting classification control, main door frame and auxiliary door frame independent operation.Full AC maintenance-free system, rapid and accurate response, maximum operating speed up to 8km/h, low current, low energy consumption.It’s improve vehicle endurance while reducing system heating.
